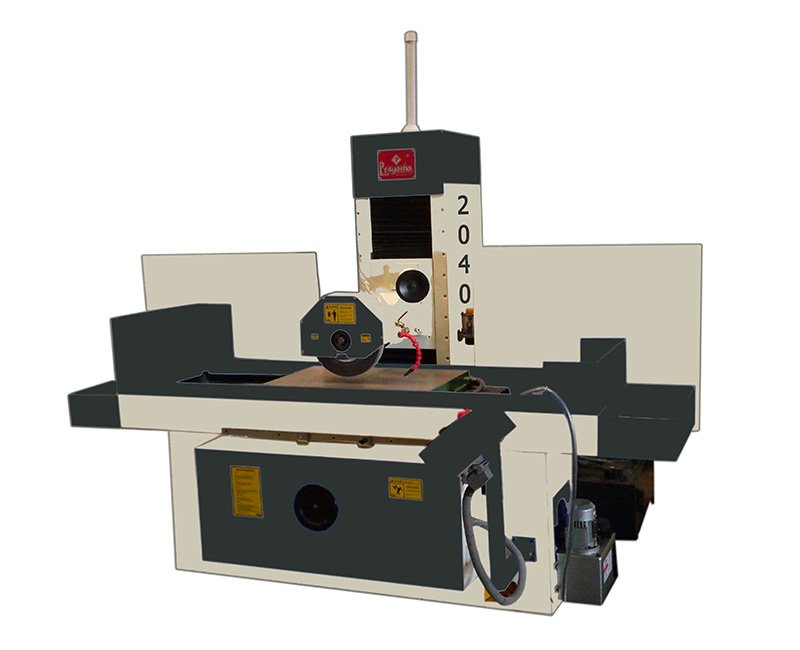

Supreme Hydraulic Surface Grinding Machine 1000 X 500MM
Supreme Surface Grinding Machine Manufacturer
Prayosha Industries provides reliable premier hydraulic surface grinding machines & surface grinders with high-quality features and performance. There are multiple models in our premier hydraulic surface grinding series designed for smooth operation with little or no vibrations and heavy-duty overall construction. Good premier hydraulic surface grinding machines are required in industries that require consistent surface finishing, grinding accuracy and production output.
Technical Specification
| CAPACITY | UNIT | PH 1632 | PH 1640 | PH 2040 | PH 2060 |
| Max. Table Size | mm | 400 x 800 | 400 x 1000 | 500 x 1000 | 500 x 1500 |
| Max. Longitudinal Travel | mm | 875 | 1075 | 1075 | 1575 |
| Max. Cross Transverse | mm | 450 | 550 | ||
| Max. Spindle Center Height above Table | mm | 550 | |||
| SPEED AND FEEDS | |||||
| Max. Table Speeds | m/min. | 5-25 | |||
| Power Cross Transverse | mm/min | 1000 | |||
| Auto Cross Feed at each Table Reversal (Infinitely variable) | mm | 0.5 to 5 | |||
| Least Count of Vertical feed head wheel | mm | 0.002 | |||
| GRINDING HEAD | |||||
| Size of Grinding Wheel | mm | 350 X 50 X 127 | |||
| Power of Spindle Motor | HP | 5 | 7.5 | ||
| Speed of Grinding Spindle | RPM | 1440 | |||
| HYDRAULIC SYSTEM | |||||
| Working Pressure | Kg/Cm | 20 | |||
| Motor | HP | 3 | 5 | ||
| Tank Capacity | Ltrs | 75 | 150 | ||
